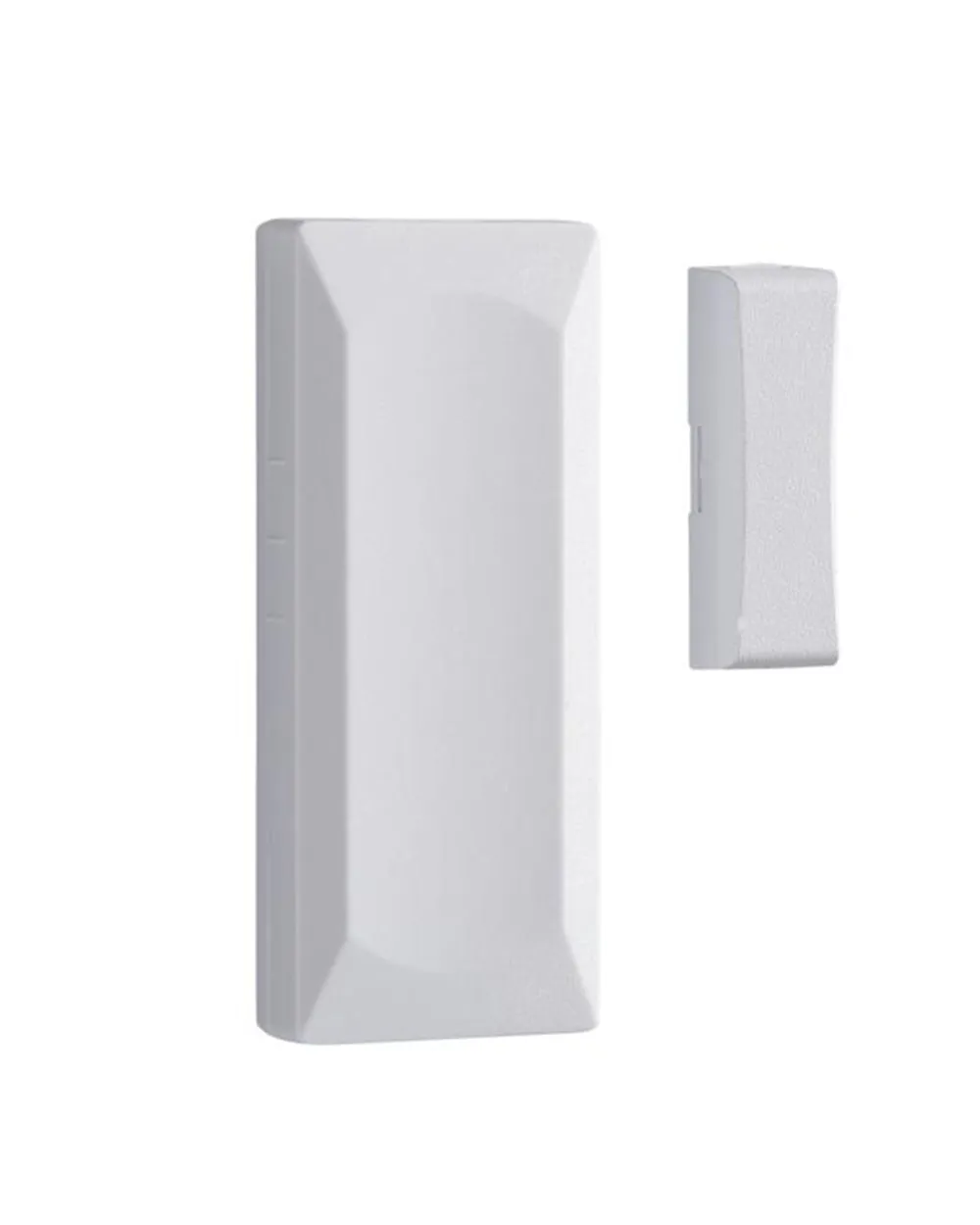

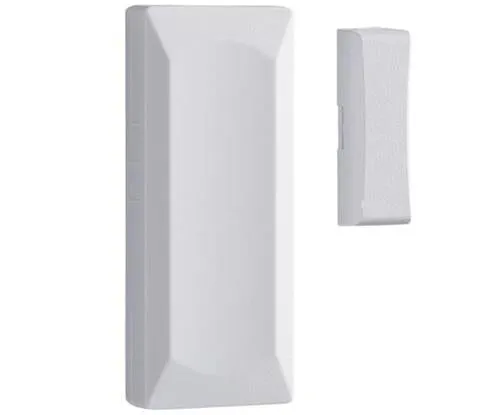

Alerts you of unauthorized entry. Works with any door, window or object that opens and closes. For added protection, our sensors are also tamper-proof.
[tabs]
[1][Features]
- For narrow applications, sensor is only 3/4″ wide
- Fully supervised
- Rare earth magnet
- Supports internal and external contacts
- Can be used for 2 zones of protection
- Lithium battery
- ETL listed
[2][Specifications]
Wireless Signal Range 350 ft (106.7 m), open air, with Wireless Control Panel
Code Outputs Alarm; Alarm Restore; Supervisory; Low Battery; External Alarm; External Restore; Tamper; Tamper Restore
Transmitter Frequency 345.000 MHz (crystal controlled)
Unique ID Codes Over one (1) million different code combinations
Supervisory Interval : 70 minutes
External Input Accepts N/C dry contact devices
Magnet Dimensions (L x W x H) 1.3 x 0.435 x 0.312 in (3.3 x 1.1 x 0.79 cm)
Magnet Type Rare Earth
Sensor Dimensions (D x H) 2.59 x 1.03 x 0.49 in (6.58 x 2.62 x 1.24 cm)
Weight (including battery & magnet) 1.1 oz (31.2 g)
Housing Material ABS Plastic
Color White
Operating Temperature 32°‐120° F (0°‐49° C)
Relative Humidity 5‐90% Non‐Condensing
Battery (included, not installed) Two (2) CR 2032 or equivalent Lithium batteries
Certification : Anatel, ETL, FCC, Industry Canada, and NOM
